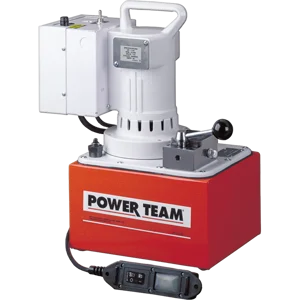

PE55 Power Team Pump

Contact us for a quote

The Power Team electric hydraulic PE55 pump is an industry leading heavy duty pump for multiple applications including post tensioning and concrete stressing. It is a manually operated, single acting pump with an open pressure of 10,000PSI and an 18.85L reservoir capacity.

Features:

  • 1-1/8 HP, 12,000 RPM, 230VAC, 50 HZ universal motor. Draws 25 amps at full load, starts at reduced voltage.
  • True unloading valve achieves greater pump efficiency, allowing higher flow at maximum pressure.
  • Reservoirs available in sizes up to 10 gallons, refer to pump accessories page.
  • Lightweight and portable. Best performance-to-weight ratio of all Power Team pumps.
  • 10 Foot remote motor control (except PE552S which has a 25 foot remote motor and valve control).

Comparable Models - please contact us to find the right pump for your specific needs.

Product Flow Voltage Reservoir Capacity (in3) Oper. Pressure Cylinder Compatibility Valve Operation Valve Type Weight
PE552S-RP50 0.91l 115 VAC 18.85l 689bar Single-Acting Solenoid 3W2P 29.5
PE554T-E110 0.91l 115 VAC 8.59l 689bar Double-Acting Manual 4W3P Tandem Center 29.5
PE554S-E110 0.91l 115 VAC 8.59l 689bar Double-Acting Solenoid 3/4W2P 29.5
PE554PT 0.91l 115 VAC 8.59l 689bar Double-Acting Manual Post Tension 29.5
PE554-RP50 0.91l 115 VAC 18.85l 689bar Double-Acting Manual 4W3P Tandem Center 29.5
PE552S-E220 0.91l 230 VAC 8.59l 689bar Single-Acting Solenoid 3W2P 29.5
PE554S-50-220 0.91l 230 VAC 8.59l 689bar Double-Acting Solenoid 3/4W2P 29.5
PE550-RP50 0.91l 115 VAC 18.85l 689bar Single-Acting Manual - 29.5
PE553-RP50 0.91l 115 VAC 18.85l 689bar Single-Acting Manual 3W3P Tandem Center 29.5
PE552A-E220 0.91l 230 VAC 8.59l 689bar Single-Acting Manual 3W2P 29.5
PE552 0.91l 115 VAC 8.59l 689bar Single-Acting Manual 3W2P 29.5
PE554S 0.91l 115 VAC 8.59l 689bar Double-Acting Solenoid 3/4W2P 29.5
PE554T 0.91l 115 VAC 8.59l 689bar Double-Acting Manual 4W3P Tandem Center 29.5
PE554-E220 0.91l 230 VAC 8.59l 689bar Double-Acting Manual 4W3P Tandem Center 29.5
PE550-E220 0.91l 230 VAC 18.85l 689bar Single-Acting Manual - 29.5
PE550-220 0.91l 230 VAC 18.85l 689bar Single-Acting Manual - 29.5
PE552S-50-220 0.91l 230 VAC 8.59l 689bar Single-Acting Solenoid 3W2P 29.5
PE553-E220 0.91l 230 VAC 18.85l 689bar Single-Acting Manual 3W3P Tandem Center 29.5
PE554-50-220 0.91l 230 VAC 8.59l 689bar Double-Acting Manual 4W3P Tandem Center 29.5
PE554T-E220 0.91l 230 VAC 8.59l 689bar Double-Acting Manual 4W3P Tandem Center 29.5
PE554W 0.91l 115 VAC 8.59l 689bar Double-Acting Manual 4W3P Tandem Center 29.5
PE554P 0.91l 115 VAC 8.59l 689bar Double-Acting Manual 4W3P Tandem Center 29.5
PE553 0.91l 115 VAC 8.59l 689bar Single-Acting Manual 3W3P Tandem Center 29.5
PE553-50-220 0.91l 230 VAC 18.85l 689bar Single-Acting Manual 3W3P Tandem Center 29.5
PE554PT-E220 0.91l 230 VAC 8.59l 689bar Double-Acting Manual Post Tension 29.5
PE552S 0.91l 115 VAC 8.59l 689bar Single-Acting Solenoid 3W2P 29.5
PE554-E110 0.91l 230 VAC 8.59l 689bar Double-Acting Manual 4W3P Tandem Center 29.5
PE552-E110 0.91l 230 VAC 8.59l 689bar Single-Acting Manual 3W2P 29.5
PE550 0.91l 115 VAC 8.59l 689bar Single-Acting Manual - 29.5
PE552-E220 0.91l 230 VAC 8.59l 689bar Single-Acting Manual 3W2P 29.5
PE554T-50-220 0.91l 230 VAC 8.59l 689bar Double-Acting Manual 4W3P Tandem Center 29.5
PE552F 0.91l 115 VAC 8.59l 689bar Single-Acting Manual 3W2P 29.5
PE554 0.91l 115 VAC 8.59l 689bar Double-Acting Manual 4W3P Tandem Center 29.5
PE552A 0.91l 115 VAC 8.59l 689bar Single-Acting Manual 3W2P 29.5
PE554W-RP50 0.91l 115 VAC 8.59l 689bar Double-Acting Manual 4W3P Tandem Center 29.5
PE554S-RP50 0.91l 115 VAC 18.85l 689bar Double-Acting Solenoid 3/4W2P 29.5
PE554S-E220 0.91l 230 VAC 8.59l 689bar Double-Acting Solenoid 3/4W2P 29.5
PE554PT-50-220 0.91l 230 VAC 8.59l 689bar Double-Acting Manual Post Tension 29.5
PE554C 0.91l 115 VAC 8.59l 689bar Double-Acting Manual 4W3P Open Center 29.5
PE552A-50-220 0.91l 230 VAC 8.59l 689bar Single-Acting Manual 3W2P 29.5
PE552-50-220 0.91l 230 VAC 8.59l 689bar Single-Acting Manual 3W2P 29.5
