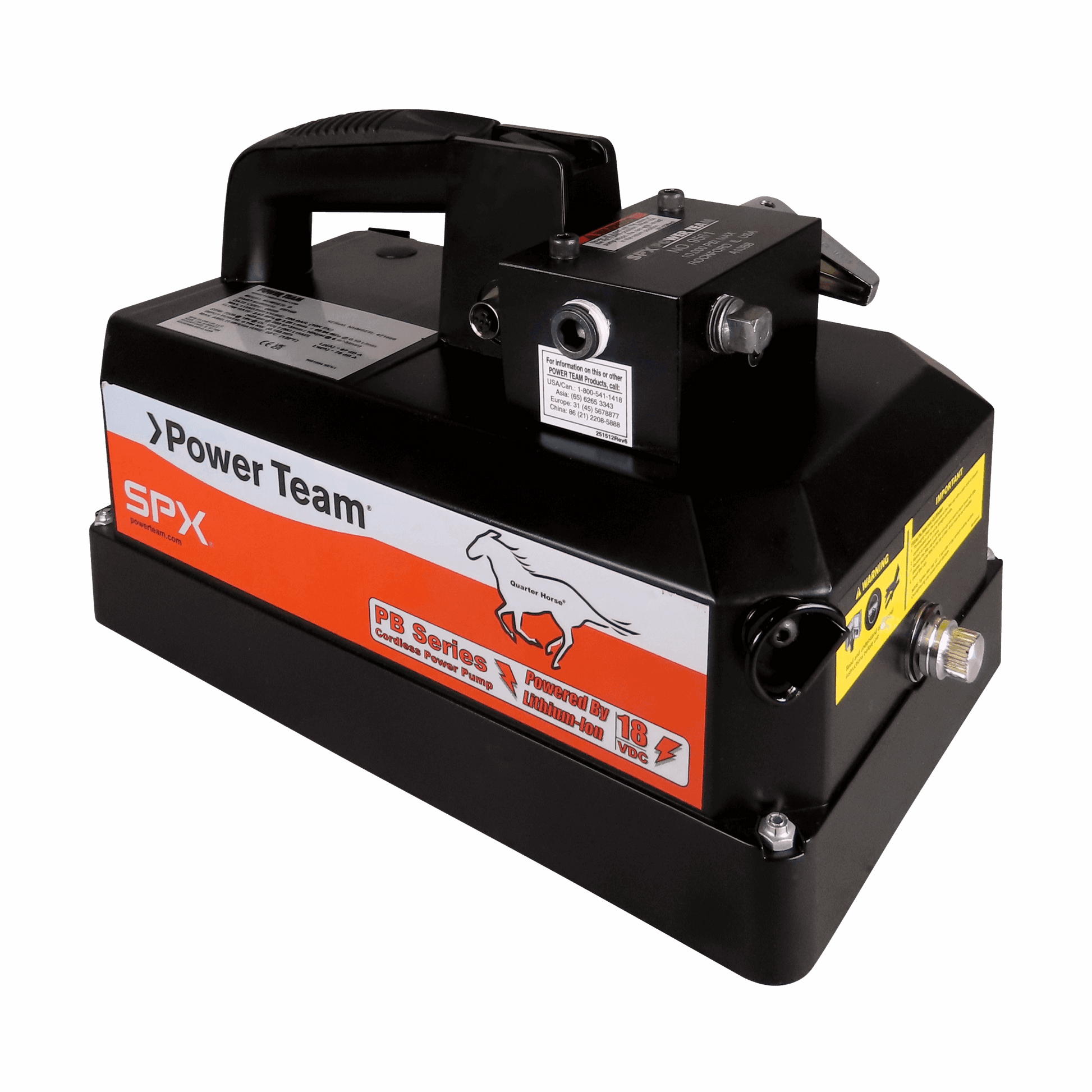

Power Team PB102 Battery Hydraulic Pump | 10,000 PSI
Contact us for a quote
In stock - ready for immidate dispatch
Note:Â 18V Milwakee battery is included but battery charger is not included with this model of pump.
The Power Team PB102 battery hydraulic pump is a compact, portable and cordless high-pressure hydraulic pump designed for demanding maintenance, lifting, pulling, spreading, bending, cutting and crimping applications. Powered by an 18 VDC lithium-ion battery, the PB102 provides high-pressure hydraulic power without the need for mains electricity or compressed air.
With a maximum operating pressure of 10,000 PSI (690 bar), the Power Team PB102-0 is designed to operate a wide range of compatible single-acting hydraulic tools and cylinders. Its cordless design makes it particularly useful for field service, maintenance, shutdowns and applications where portability and freedom from power cables are important.
Compact, Cordless High-Pressure Hydraulic Power
The PB102 combines a two-stage high-pressure hydraulic pump with an 18 VDC lithium-ion battery system. The two-stage pump provides higher flow during the initial stage for faster tool advancement before moving into the high-pressure stage for demanding hydraulic applications.
The compact design, ergonomic grip and transport shoulder strap make the PB102 easy to move between work areas, while the self-contained rubber bladder reservoir allows the pump to operate in most positions. The pump has a usable oil capacity of approximately 1.1 litres (70 cu. in.).
Key Features
- 10,000 PSI (690 bar) maximum operating pressure
- 18 VDC lithium-ion battery powered (18V Milwakee battery included - no charger)
- Two-stage high-pressure hydraulic pump
- Single-acting hydraulic applications
- Approximately 1.1 litre (70 cu. in.) usable oil capacity
- Compact and portable design
- Ergonomic carrying handle
- Transport shoulder strap
- Self-contained rubber bladder reservoir
- Quiet, smooth-running 18 VDC motor
- High-impact reinforced protective shroud
- Large valve section for a range of hydraulic applications
- Optional remote hand or foot controls available for compatible configurations
Applications
The Power Team PB102-0 battery hydraulic pump is suitable for a range of high-pressure hydraulic applications, including:
- Hydraulic lifting
- Hydraulic pulling
- Bearing and component removal
- Hydraulic spreading
- Nut splitting
- Hydraulic crimping
- Bending applications
- Cutting applications
- General industrial maintenance
- Field service and equipment maintenance
- Shutdown and maintenance operations
The Power Team PB series has been developed for applications where portable, cordless hydraulic power can improve productivity and reduce the need for electrical or compressed-air connections.
Ideal for Field Service & Remote Applications
The cordless design of the PB102-0 makes it particularly useful where access to mains electricity or compressed air is limited. At approximately 10.9 kg (24 lb), the pump is compact enough to transport between work areas while providing high-pressure hydraulic power for demanding applications.
This makes the PB102-0 a practical solution for maintenance teams, workshops, field technicians and industrial operators requiring portable high-pressure hydraulic equipment.
Power Team PB102-0 Specifications
| Specification | PB102-0 |
|---|---|
| Maximum operating pressure | 10,000 PSI / 690 bar |
| Power source | 18 VDC lithium-ion battery |
| Battery | 9.0 Ah lithium-ion |
| Pump type | Two-stage |
| Hydraulic application | Single-acting |
| Usable oil capacity | 70 cu. in. / 1.1 L |
| Approximate weight | 10.9 kg / 24 lb |
| Motor | 18 VDC |
| Port connection | 3/8" NPTF |
| Valve configuration | 2-way |
| Optional controls | Hand or foot pendant |
Specifications can vary depending on the specific PB102 configuration. Please contact PowerLift Hydraulics to confirm the configuration and accessories supplied with your selected model.
Why Buy the Power Team PB102 from PowerLift Hydraulics?
PowerLift Hydraulics specialises in high-pressure hydraulic equipment, supplying and servicing hydraulic pumps, cylinders, tools and associated equipment for industrial applications across Australia.
As an authorised Power Team distributor and repairer, our experienced team can assist with selecting the correct hydraulic pump, compatible cylinders and hydraulic tools for your application.
We can also provide advice on hydraulic hoses, couplers, gauges and other high-pressure hydraulic accessories required to complete your hydraulic system.
Need a Portable High-Pressure Hydraulic Pump?
The Power Team PB102-0 provides a compact cordless solution when you need 10,000 PSI hydraulic power without mains electricity or compressed air.
Contact PowerLift Hydraulics for technical advice, product availability and assistance selecting the right Power Team hydraulic pump for your application.
